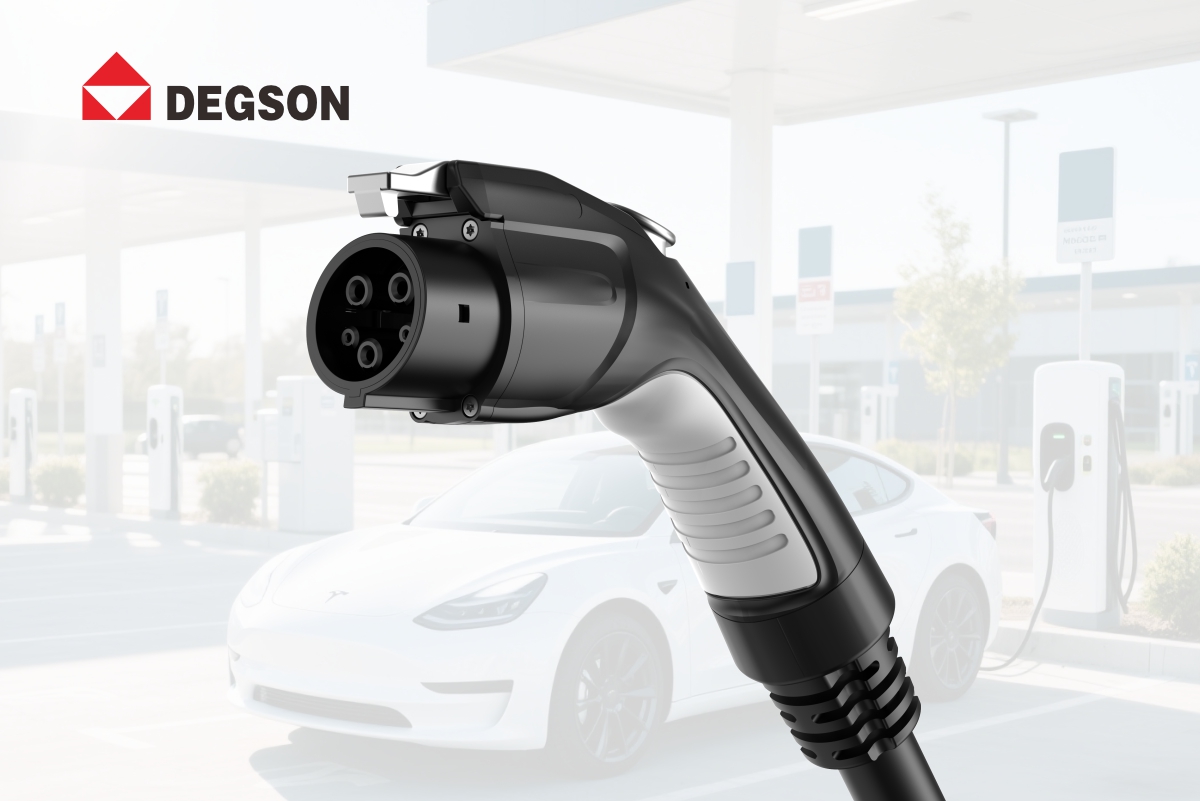

Why Does Your J1772 Charging Gun Overheat? (And How to Prevent It)
If you've ever unplugged your EV after a charging session and noticed the J1772 connector was uncomfortably hot—or even triggered a thermal warning on your dashboard—you're not alone. Overheating is one of the most common and potentially dangerous issues with EV charging equipment. In this guide, we'll break down the root causes of J1772 charging gun overheating and provide actionable steps to prevent it, protecting both your vehicle and your home.
1. Loose Connections and Terminal Resistance
The most frequent culprit behind an overheating charging gun is a poor electrical connection. According to Joule's Law P=I²R, the heat generated is proportional to the square of the amperage multiplied by resistance. In a J1772 plug, pins must maintain perfect contact with the vehicle's inlet. Over time, vibration, repeated plugging/unplugging, or improper assembly can loosen internal terminals. Even a micro-gap creates high resistance. When 32A or 48A flows through this spot, it acts like a miniature heater, rapidly melting plastic or welding pins together.
2. Inadequate Wire Gauge or Cable Damage
A charging gun's cable must be properly sized for its rated amperage. If internal copper conductors are too thin (undersized), they act as a heating element under load. Similarly, if the TPU jacket is cracked or insulation is damaged, moisture can enter, causing partial short circuits or corrosion that increases resistance and generates excessive heat at the core of the cable.
3. Environmental Heat and Poor Ventilation
J1772 guns are often used in driveways or unventilated garages. When ambient temperature exceeds 95°F (35°C), combined with direct sunlight on a dark connector housing, the device's ability to dissipate heat is severely compromised. Continuous high-amperage charging in such conditions pushes internal temperatures beyond safe limits, risking thermal runaway or permanent damage to the control box.
4. Charging at Maximum Amperage Continuously
Many portable chargers are set to draw maximum rated current (e.g., 40A on a 50A circuit). While within spec, this leaves zero margin for error. If grid voltage fluctuates or cooling is obstructed, sustained maximum load causes heat buildup faster than the gun can cool down, leading to premature aging of internal components.
5. Lack of Built-in Thermal Protection
Cheap, uncertified chargers often skip critical safety components like temperature sensors (NTC thermistors). Without active thermal monitoring, the gun has no way of knowing it's overheating until it's too late—potentially melting the plug, damaging your EV's charge port, or starting a fire. This is why UL 2594 certification is non-negotiable.
How to Prevent Overheating: 5 Essential Steps
1. Inspect Regularly: Check the plug, pins, and cable for wear, discoloration, or melting before each use. If the plug feels wobbly, the latch may be worn.
2. Verify Electrical Installation: Ensure your outlet uses the correct wire gauge (e.g., 6 AWG for 50A) and terminals are torqued to spec. A loose neutral wire can generate significant heat.
3. Avoid "Daisy-Chaining" Adapters: Never use multiple adapters or household extension cords, as each connection point adds resistance and a failure point.
4. Provide Shade and Airflow: Park in shaded areas. Avoid leaving portable units coiled tightly in a hot trunk before use, as trapped heat pre-conditions the device unsafely.
5. Choose a Certified Charger with Smart Thermal Management: Look for UL 2594 certified guns with built-in sensors that auto-throttle or shut down if heat exceeds safe thresholds.
Why DEGSON Charging Guns Are Engineered to Stay Cool
Multi-Point Smart Temperature Monitoring
We integrate high-precision NTC thermistors inside the plug head, along the cable, and in the control box. If an abnormal rise is detected, the system intelligently auto-adjusts current or initiates a safe, controlled interruption.
Premium Conductive Materials
High-purity copper alloy terminals, precision-machined to exact tolerances, ensure a snug, low-resistance fit every time, minimizing heat generation at the source.
Advanced Thermal Design
The housing uses UL 94 V-0 flame-retardant thermoplastic. Internal heat sinks and optimized layouts maximize passive heat dissipation, keeping the gun cool even after hours of 80A charging.
Frequently Asked Questions (FAQ)
Q1: Is it normal for my J1772 charger to be warm during use?
Slightly warm upto120°F/49°C is normal due to energy transfer. However, if it's too hot to touch comfortably or smells like burning plastic, stop charging immediately.
Q2: Can I use a J1772 extension cable without overheating risk?
Only if it's a heavy-duty, certified extension cable rated for the same amperage as your charger. Most consumer-grade extensions are not safe for 32A+ continuous loads.
Q3: How does DEGSON's thermal protection work differently?
Unlike basic chargers with a single sensor, DEGSON uses multi-point monitoring.oring and precision current management to proactively adjust power, preventing damage before it occurs.
Q4: What should I do if my charger overheats?
Stop charging immediately, unplug from the wall first (if safe to do so), let it cool completely, and do not use it again until it has been inspected by a professional or replaced.
Explore DEGSON's full range of SAE J1772 AC charging guns—engineered for safety, built to stay cool, and backed by decades of electrical expertise.
